Step-by-Step Detailed Guide

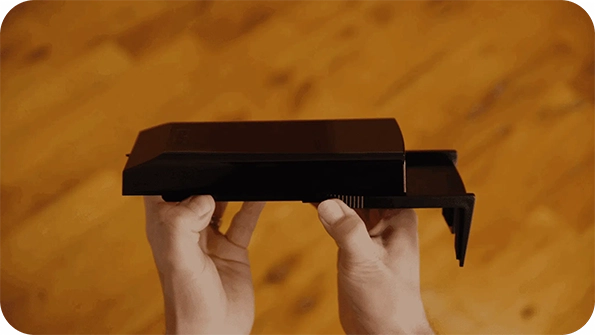

Hold the cover with one hand. With the other hand, gently squeeze the adjustment tabs on both sides and fully extend the back piece.

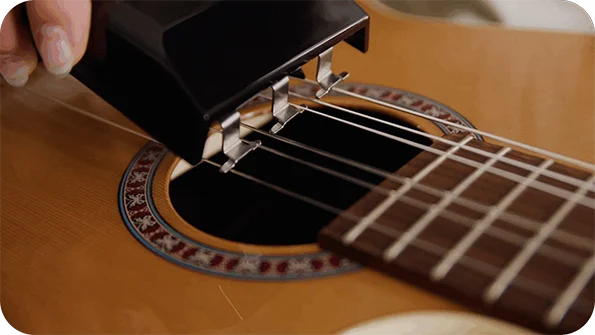

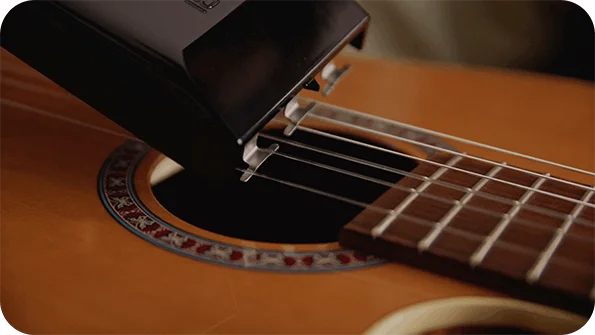

Tilt the unit diagonally and weave the pick-up wings under the strings above the sound hole, ensuring each string is properly seated on a pick-up wing.

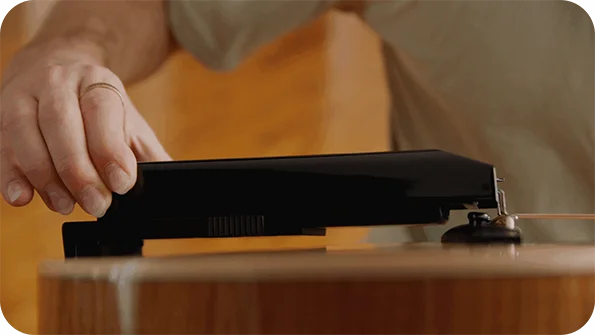

Gently pull the unit backwards until the pick-up wings contact the guitar’s saddle. Then carefully lower the unit to a position parallel to, but not touching, the soundboard.
Squeeze the adjustment tabs and push the back piece to the guitar's tail, while retracting the cover with your other hand to expose the pick-up bar and its three arms slightly.

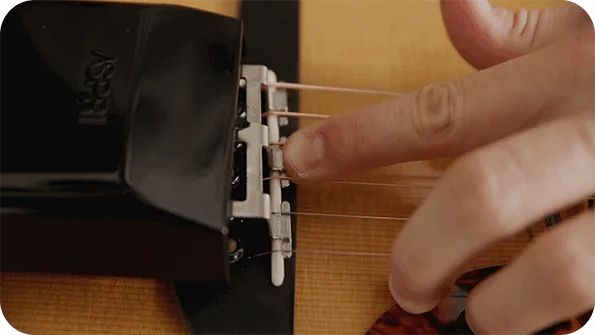

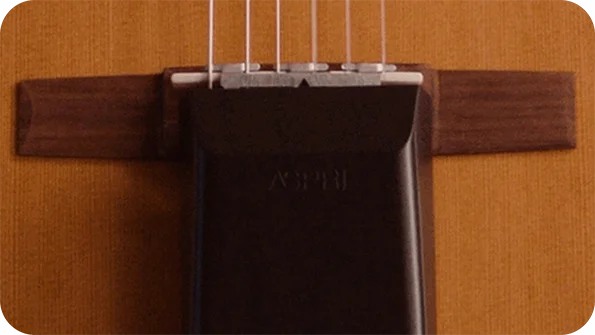

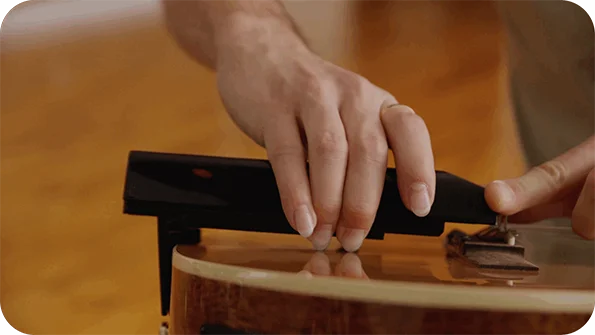

Firmly press the pick-up wings to ensure they are fully in contact with the saddle.

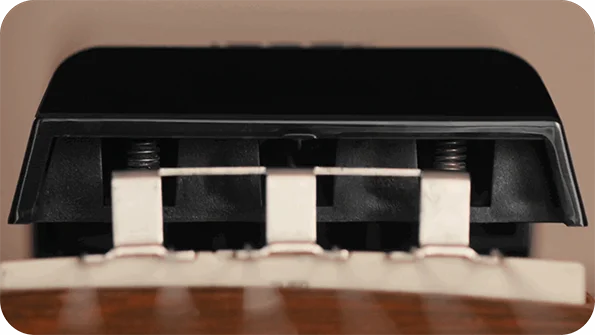

Ensure the suspension springs are aligned with the pick-up arms.
If not, gently adjust the unit from the back piece to correctly align the suspension springs.

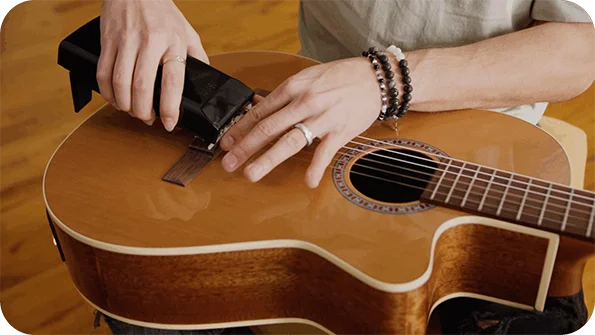

To remove, gently pull the back piece. Lift the unit, move it toward the sound hole, and then carefully weave it out from under the strings.
